Designed for accurate pipe-end belling with consistent heating, forming, and cooling support for high-performance PVC pipe production lines. Engineered for seamless inline integration and rigorous continuous operational demands.
Continuous heating chambers for non-stop pipe cycle support.
Every belling mold undergoes dynamic calibration inspections to prevent pipeline wall thinning.

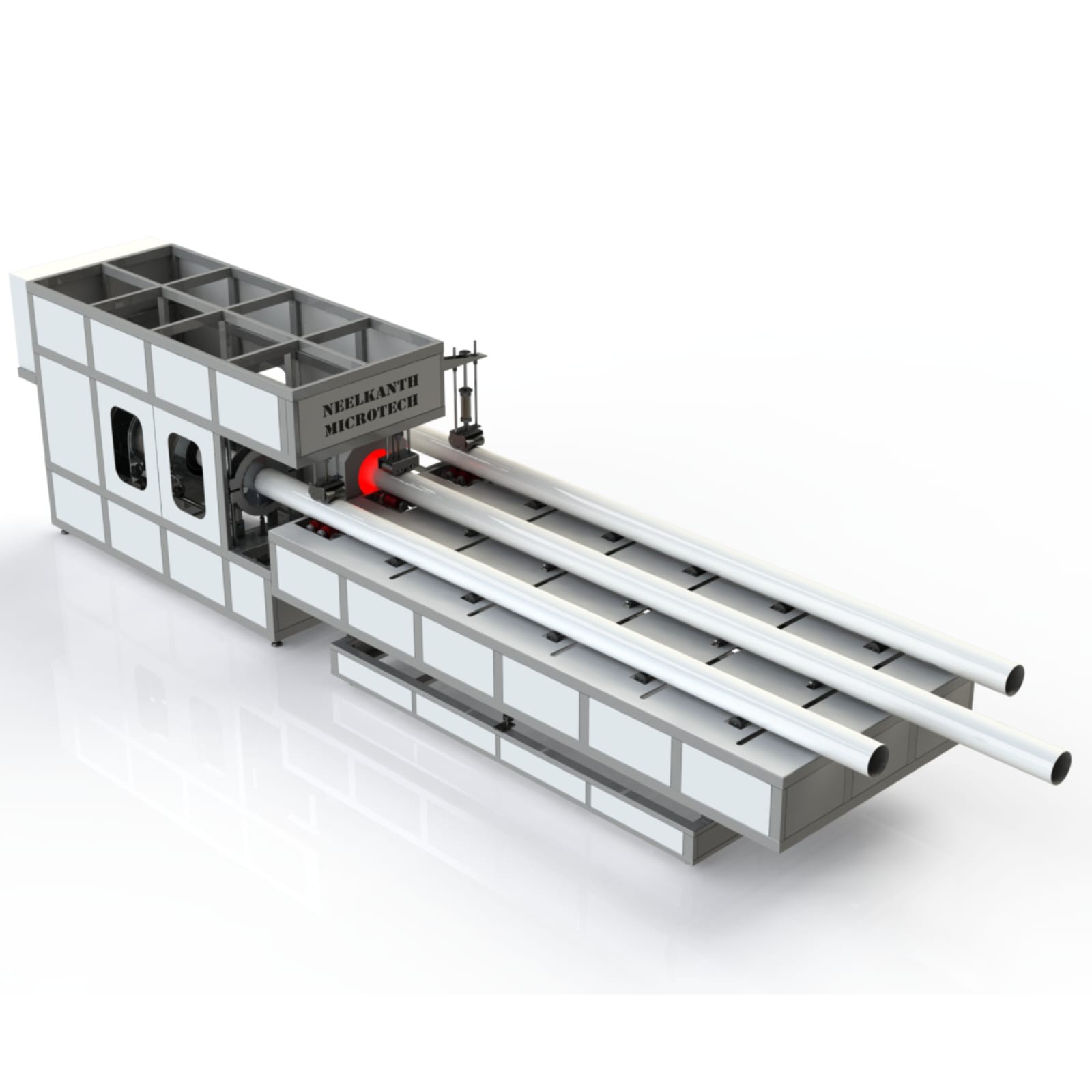

The **PVC Pipe Belling Machine** is used to form precise bell ends on PVC pipes for secure joining and reliable pipe installation. Neelkanth Microtech provides practical, quality-focused machinery solutions for manufacturers looking for consistent belling performance, thermal accuracy, and high production reliability.
By leveraging uniform contact infrared heating and high-efficiency pneumatic calibration, this machine delivers consistent wall thicknesses along the entire expanded bell zone. It supports seamless integration within extrusion lines or stand-alone batch production configurations.
Easily syncs with modern twin-screw extrusion speed metrics.
Multi-zone ceramic heating elements prevent polymer burning.
Our belling systems integrate heavy-duty hardware with easy manual control systems for long-term operational success.
Achieve perfect dimensional tolerances for reliable joint integrations on every batch.
Advanced infrared ceramic heaters ensure balanced temperature distribution without hot spots.
Pneumatically synchronized forming pins ensure linear travel metrics and roundness consistency.
High-volume cooling blowers stabilize the formed bell dimensions before extraction.
Heavy channel steel framing absorbs dynamic mechanical stresses during processing cycles.
Intuitive control panels and quick mechanical setups minimize operator training times.
Capable of uninterrupted 24/7 cycles within challenging plant floor atmospheres.
Tailor-made belling molds can be integrated based on specific dimensional requirements.
Our belling technology serves critical pipe manufacturing sectors to support durable, high-volume production schedules.
Inline integration with standard PVC pipe belling operations.
Excellent material softening management for rigid unplasticized PVC.
Belling for high-pressure residential plumbing system standards.
Optimal for irrigation pipelines requiring durable joints.
By shifting to Neelkanth Microtech's belling machinery, pipe manufacturers realize measurable output advantages.
Eliminates out-of-round deformations, ensuring seamless field joins and easy pipe installations.
Uniform wall thickness along the expanded area eliminates structural weak points.
Pneumatically automated cycles manage mechanical belling steps, freeing up line operator times.
Fast cycle times prevent downstream material pileups behind the pipe extruder.
Four distinct phases managed with coordinated accuracy to transition rigid raw pipe ends into high-tolerance bell connectors.
The raw cut pipe is fed into the alignment carriage where clamps secure the linear axis of the tube.
The pipe end enters the ceramic heating chamber, softening the polymer evenly to prevent stress cracking.
A precision-machined mold is pneumatically driven into the heated end to expand it into the target bell profile.
High-velocity air consolidates the polymer before clamps release the finished pipe for final downstream handling.
Standard operational thresholds. Customized configurations are available upon request to fit your unique extrusion line speeds.
| Parameter | Standard Capability |
|---|---|
| Machine Type | Automatic PVC Pipe Belling Machine |
| Pipe Material | PVC / UPVC / Rigid Polymers |
| Pipe Size Range | Diameter 20 mm to 250 mm (Model dependent) |
| Heating System | Infrared Ceramic Heating Tunnel with dual control zones |
| Operation Type | Semi-Automatic / Fully Automatic configurations |
| Power Requirement | 415V, 3-Phase, 50Hz (Approx. 12 kW to 24 kW) |
| Customization | Supported (Custom belling pins & special voltage ratings) |
| Application | Industrial Extrusion Line / Stand-alone finishing stations |
Share your target pipe diameters and extrusion volumes with Neelkanth Microtech. Our engineering team will review your parameters to guide you with the right machinery configuration.
Common queries surrounding the PVC belling technology pipeline.
It is specialized machinery designed to expand one end of a rigid plastic pipe. This expanded "bell" acts as an integrated connector, allowing the raw end of the subsequent pipe in a pipeline installation to fit snugly inside for secure coupling.
It is primarily deployed in PVC and UPVC pipe extrusion plants, building material manufacturing facilities, and irrigation piping fabrication plants where high-efficiency pipe-end preparation is critical.
Yes, absolutely. Neelkanth Microtech provides custom mold profiles, custom diameters, dual-extruder matching timelines, and modified voltage frameworks based on physical plant specs.
Yes. The machine features modular clamping jaws and adjustable forming chambers, allowing operators to change molds and run different pipe diameters across standard industrial schedules.
You can click any of our "Get Quote" or "Request Quote" buttons, complete the quick estimation form with your target technical specs, or email us directly at info@neelkanthmicrotech.com.
